Galvanized welded wire mesh is made from low-carbon steel wire, resistance-welded into a rigid grid and then protected with a zinc coating. Two process routes are available - coat the wire before welding, or weld first and hot-dip the finished mesh - and that choice decides how well the weld points survive outdoors. Rolls suit site cutting and long runs; panels suit reinforcement and fabrication work. Wire diameter, opening, coating weight and packing are made to order, and mixed specifications can ship in one container.

Product Parameters

Parameter	Range	Tolerance
Base Wire	Low-carbon steel wire, Q195 / Q235	Per ASTM A641
Wire Diameter	0.5 – 6.0 mm, before galvanising	±0.05 mm
Mesh Opening	12.7 × 12.7 – 100 × 100 mm square; rectangular on request	±2 mm
Panel Size	1000 × 2000 mm, 1200 × 2400 mm, or cut to size	±3 mm
Roll Size	500 – 1500 mm wide × 30 m or 50 m	±1%
Zinc Coating - Electro	8 – 12 g/m²	Per order
Zinc Coating - Hot-dip	30 – 60 g/m²	Per ASTM A641 / A123
Galvanising Route	Before weld (GBW) / after weld (GAW)	-
Weld Shear Strength	Quoted against wire diameter	-
Packing	Rolls in PVC film and woven bag; panels palletised	-

Which Galvanising Do I Need?

Indoor, dry, or painted

electro-galvanised, or galvanised before welding. Cheapest option that works.

Outdoor, humid, coastal, permanent

hot-dip after welding. The zinc goes on last, so the welds are protected too.

Not sure

tell us the environment and the service life you need, and we quote the coating weight.

Item	Electro / before weld	Hot-dip / after weld
Zinc coating	8 – 12 g/m²	30 – 60 g/m²
Salt spray, B117	48 – 96 h	300 – 480 h ⚠️
Weld points	Coating burned off - rust starts here	Covered by zinc - protected
Fine openings	Stay clear	Thick coating may partly bridge them
Cost	Lower	Higher
Test it yourself： If a sample rusts at the intersections before anywhere else, it was galvanised before welding.

Product Features

Zinc that stays on

On hot-dip mesh the coating is a zinc-iron alloy formed into the wire surface, not a film sitting on top. Bend the mesh, shear it, punch it - the coating deforms with the steel instead of flaking off at the bend.

Welds that hold and sit square

Every intersection is resistance-welded - not twisted or clipped - with the current set to the wire diameter. The mesh is held square through the line, so openings stay uniform along a full roll and panels butt up cleanly on long runs.

Flat, clean edges, no burrs

The mesh lies flat off the roll and wire ends are cut clean. Nothing snags on gloves, tarpaulin or bagged product, and stacked panels sit down flat instead of rocking on a high spot.

Rolls wound to pay out

Rolls are wound tight and straight - no coning, no slack core, no collapsed centre - so the roll feeds evenly on site and the last few metres are still usable.

Where It Is Used

Sector	Typical Applications	Typical Specification
Construction	Wall insulation reinforcement, plaster and screed mesh, floor heating mesh	0.5 – 1.2 mm wire, 12.7 – 25 mm opening
Concrete reinforcement	Slabs, precast units, bridge decks	4 – 6 mm wire, to ASTM A185
Livestock and agriculture	Animal cages, pen panels, livestock flooring, orchard fencing	1.5 – 3 mm wire, hot-dip
Perimeter and site fencing	Highway, railway and site fencing, temporary barriers	3 – 6 mm wire, hot-dip after weld
Industrial protection	Machine guards, conveyor covers, screen panels	1 – 3 mm wire
Home and garden	Storage baskets, decorative mesh, plant supports	0.8 – 2 mm wire, electro

Capacity and Delivery

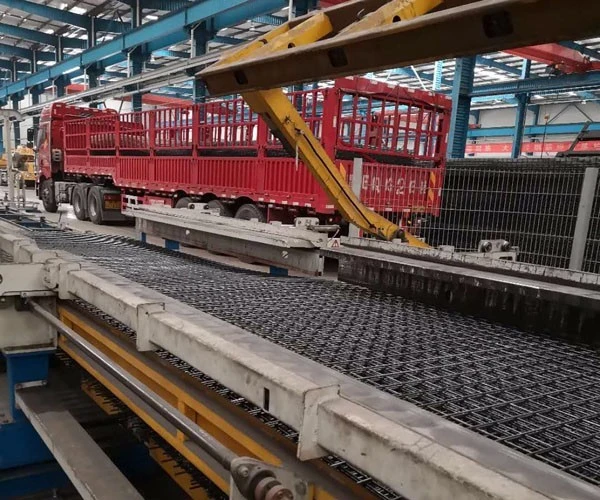

Dedicated automated line - drawing, welding, galvanising and inspection in one flow - above 300,000 linear metres a month, several specifications running at once so mixed orders do not wait. Regular specifications ship in 15 - 20 days, urgent orders can be expedited, and phased shipments and container plans are built around your schedule.

LEARN MORE

FAQ

Q: How can the zinc coating on galvanized welded wire mesh be verified?

A: A third-party test report detailing the zinc coating weight is provided with each order. Upon arrival, you may conduct a follow-up check using a portable magnetic thickness gauge; the readings should align within the instrument's specified tolerance. We will replace any batches that do not meet these requirements.

Q: How can rust be prevented at the cut edges of galvanized welded wire mesh?

A: The alloy layer present at the cut edges of hot-dip galvanized mesh provides a certain degree of protection. For edges that will be exposed for an extended period, simply apply a zinc-rich coating-which can be supplied along with your order.

Q: Can different specifications ship in one container?

A: Yes,five specifications or fewer, with the list sent in advance, so packing and loading can be optimised.
